Assembly Industrial Sheathed Thermocouple Type K J for Glass Industry
Description:
1) Type k thermocouple is the most common type of thermocouple. It’s the best price, accurate, reliable, and has a wide temperature range. Type k thermocouple is commonly found in nuclear applications because of its relative radiation hardness. Type k thermocouple can meet 1200C for short time using, type k thermocouple can meet 100C for long time using. Type k thermocouple is widely used in industrial,household and other places.
2) This thermocouple is made for fiber glass insulated wire in a stainless steel tube. The element is normally brazed to the tube at the tip. Bayonet adaptor is used for mounting purpose. N most of the furnace thermocouples are placed in block pockets, but over a period of service it may get through hole. At crown there are number of points to measure in center, right & left, the same kind of assemblies can be used for regenerator crown as well.
Specification:
1.Type and Graduation
2. Spec. of protection tube(total length and well length).
Temperature needed:0-1800°C
Graduation S normally means: 0-1300°C
Graduation B normally means: 0-1600°C
Graduation R normally means: 1400-1500°C.
Method of fixing: normally without fixing device, but flange or threaded is available.
Diameter and length:Can be customized as customer's requirements(16mm or 20mm)
Terminal box:water-proof type,splash-proof type,anti-explosion type,connector type,import type.
Fixed device : flange/none/screw
Temperature Range: 0~1300 centigrade .
Terminal blocks: terminals box
| Type | B |
| Temp range | 0-1300 centigrade |
| Accuracy | < ± 0.5% t |
| Insulation resistance | 5MΩ (20°C) |
| Size | 300,400,450,500,550...(mm)
|
Product Tags:
|
|

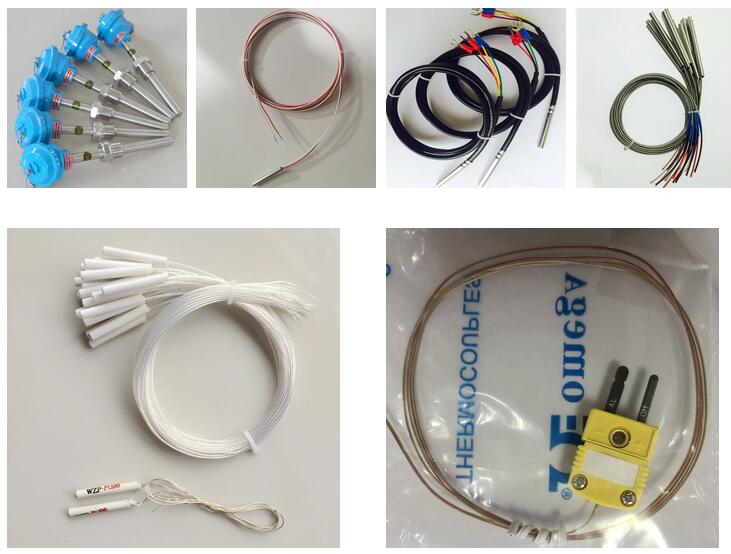

Sheathed Industrial Thermocouple Rtd Type K J Ss304 Ss316 For Glass Industry Images
|
