3x3Mm Spring Thermocouple RTD Hot Runner Coil Heater with brass tube

  • 1
  • 2
  • 3

Brand Name : GME

Certification : CE

Place of Origin : China

MOQ : 50pcs

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 100000 pcs per Month

Delivery Time : 7~10 working days

Packaging Details : cartons, pallet

Power Source : Electric

Dimension : Customized

Voltage : 12-480V

Sheath material : Stainless Steel or Nickel

Cross Section : 3.2*1.8mm

Style : straight or coil

Lead wire : copper, , fiberglass silicon

Coiling Scheme : Tangential, radial exits, axial

Contact Now


3x3Mm Spring Thermocouple RTD Hot Runner Coil Heater with brass tube

Description:

Coil heater:
110/120V,100W/150W/200W ,15.8/16/20mm and height 12.7mm,with k type thermocouple and ground wire, with 5 feet black kevlar sheath and fully black XLR male plug

12VDC,70W ,15.8/16/20mm and height 12.7mm,with k type thermocouple and ground wire, with 5 feet black kevlar sheath and fully black XLR male plug

The flat coil heater: 110/120V,100W/150W/200W ,8/9/10mm ID and 25/26mm OD ,with k type thermocouple and ground wire. with 5 feet black kevlar sheath and fully black XLR male plug

12VDC, 70W ,8/9/10mm ID and 25/26mm OD ,with k type thermocouple and ground wire. with 5 feet black kevlar sheath and fully black XLR male plug

Specification:

Sectional area3X3,4.2X2.2,4X2,4X2.7,4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.3
Minimum ID8mm
Sheath MaterialSS304,SS310
Insulation MaterialHigh Pure MgO
Resistance WireCr20Ni80
Maximum Sheath Temperature 700°C
Die Electrical Strength800V A/C
Insulation> 5 M W
Dimensional ToleranceCoil I.D + 0.1 to 0.2mm// Coil Length + 1mm
Wattage Tolerance+ 10% (+ 5% Available Upon Request)
Voltage12V~380V
Wattage70W~1000W
Build-in thermocouple powerwithout or with J/K thermocouple
Sheath's length500/1000/1200/1500/2000mm
Available sheathnylon,metal braided,fiberglass ,silicone rubber, kevlar
Sheath's color standard is black,other color is also available
Connector without or with 5 pin xlr,4 pin min xlr connector
Connector' colorsilver or fully black






3x3Mm Spring Thermocouple RTD Hot Runner Coil Heater with brass tube
3x3Mm Spring Thermocouple RTD Hot Runner Coil Heater with brass tube

Application:

Precision formed junctions for high accuracy
Insulated for high temperatures
Field bendable to any configuration
Made from calibrated thermocouple wire
Moisture proof-insulation sealed in metal
Rapid response
Small in size
Hygienically clean
Weldable


Advantage:

1) Uniformly heating
2) Moisture-proof grade IP 65
3) Insulated sleeves connected inside (the same as GC)
4) Different cross sections for your choice: 2.2*4.2mm, Dia 1.8mm, 3.2*1.8mm, 3.0*3.0mm, 3.3*3.3mm, 4.0*2.0mm, 3.5*3.5mm, 4.0*4.0mm, 4.5*2.7mm
5) High insulation (>500MΩ)
6) High resistance >1000V

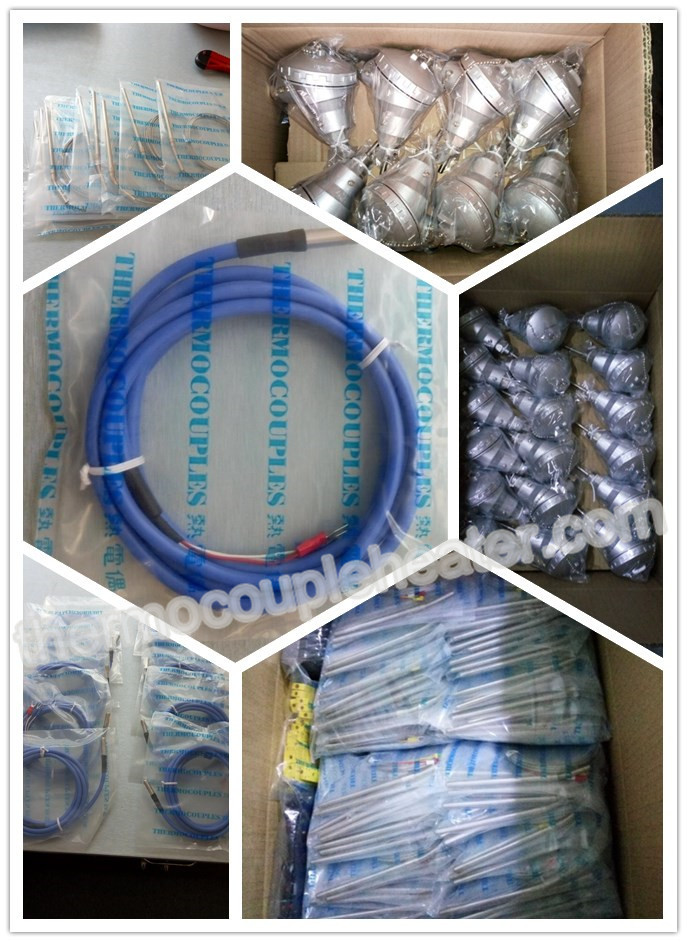

Package:
3x3Mm Spring Thermocouple RTD Hot Runner Coil Heater with brass tube

Other Info

1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
3x3Mm Spring Thermocouple RTD Hot Runner Coil Heater with brass tube
