1. Description
| Condition: | New | Type: | Band Heater | Power Source: | Electric |
| Dimension(L*W*H): | Customized | Weight: | According to your dimension | Voltage: | Customized |
| Power(W): | Customized | Certification: | CE | Warranty: | 1 year |
| Size: | 30mm-180mm | Certification:: | CQC;CSA;ISO;CE;UL | Material:: | Brass |
| Working Life:: | 1-5years | Heating Speed:: | Fast Heating | Total Length:: | Customized |
| Appliance:: | Injection Molding Machine/Extruder heater parts | | | | |
2. Specifications
150w copper band heater
1.Certificate:UL,CE,ISO,ROHS,FCA
2.Use For injection nozzle heating
3.Fast heating&Durable
4.Long li

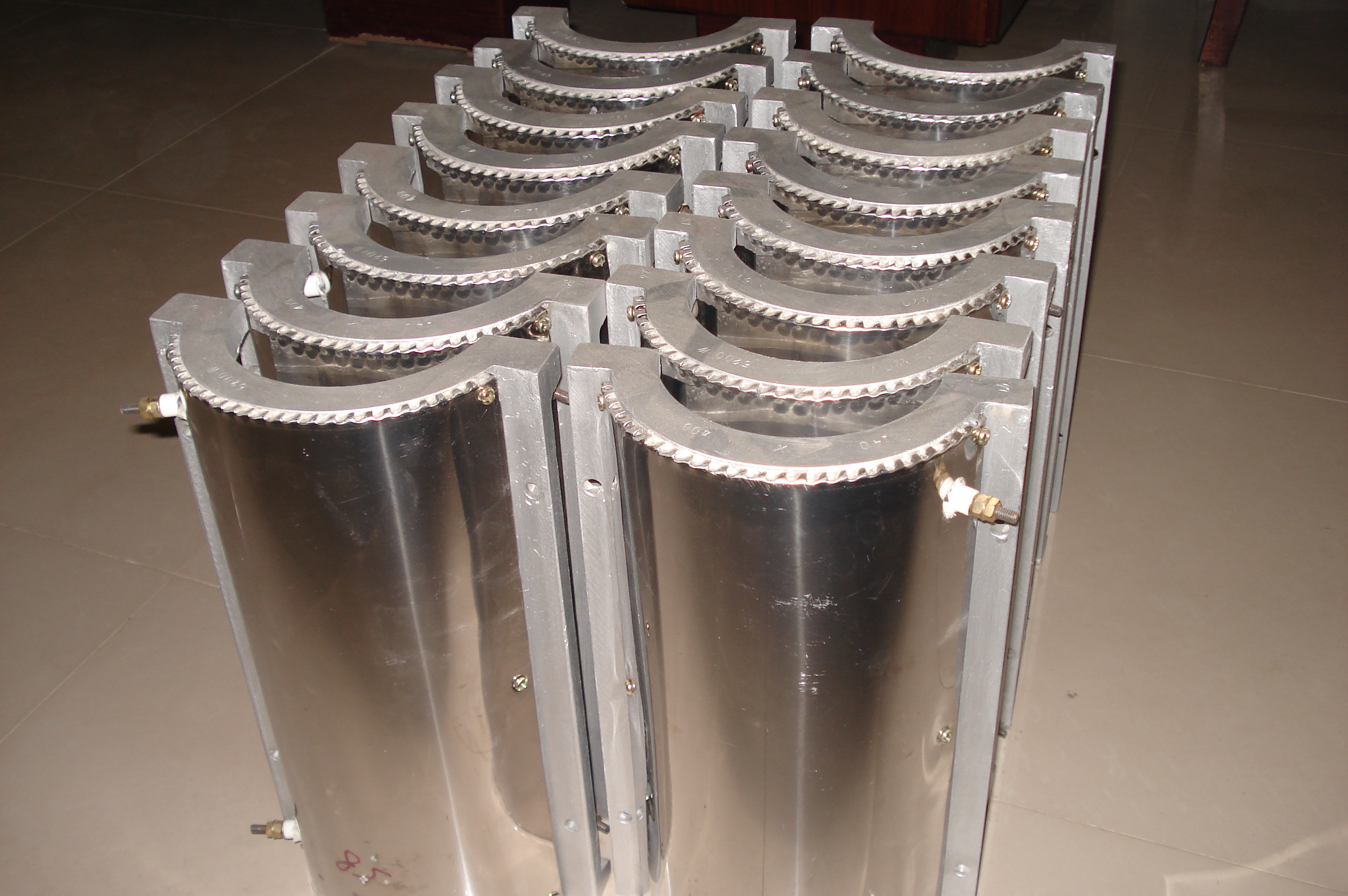

Electric casting 150w copper band heater
Band heater for injection molding machine ,They are designed to heat up cylindrical parts by conduction.
They are used in many manufacturing processes such as the injection, extrusion and moulding processes or other specific applications
such as tank heating and they are to be found in many industries such as the plastic processing industry, the car industry, chemical and food processing industries, etc
Table:
| Model | Dimension(mm) | Voltage(V) | Power(W) | Key Technical Indexes |
| DT-BH-Φ45Χ50 | Φ45Χ50 | 220 | 1000 | 1.Use condition: environment temperature -20~+60°C, Relative temperature <95% 2.Leakage current:<0.5MA 3.Insulation resistance:≥5MO 4.Ground resistance:<0.1O 5.Voltage resistance: no electric breakdown for 1 minute under 1500V 6.Temperature endurance:100-1200°C |
| DT-BH-Φ22Χ160 | Φ22Χ160 | 230 | 1200 |
| DT-BH -Φ40Χ40 | Φ40Χ40 | 220 | 400 |
| DT-BH -Φ30Χ50 | Φ30Χ50 | 220 | 400 |
| Note: Other models are available according to your specifications. Please refer to the Order Guide |
Or Customized according to your requires.
Order Guide:
Please specify the following when ordering:
1. Diameter (mm) and length (mm) of heaters
2. Type of leads and length (mm)
3. Voltage and power density
4. Content of the stamping if needed
5. Order quantity
6. Delivery date
*It’s better to provide us with the drawings/pictures
