K Type Adjustable Bayonet Fiberglass Insulation Wire Thermocouple Probe

Brand Name : GME

Certification : ISO9001/CE

Place of Origin : China

MOQ : 10 pcs

Price : Negotiation

Payment Terms : T/T, Western Union,Paypel

Supply Ability : 100000 pcs per Month

Delivery Time : 7~20 working days after received your payment

Packaging Details : Standard Export Packing

Product Name : Thermocouple Probe

Calibration : K

Probe Size : OD 1/8''

Wire Length : 1 Meter

Insulation : Fiberglass

Accuracy : Class I

Probe Material : SS304

Max.temperature : 900F or 500C

Protection Material : Stainless Steel Braided Screen

Contact Now

K Type Adjustable Bayonet Fiberglass Insulation Wire Thermocouple Probe

1.Specification

Probe material

SS 304

Calibration

Type K

Accuracy

Class I

Junction

Ungrounded , Ground

Wire description

fiberglass insluation and Stainless Steel Braided Screen protection

Termination type

3” split leads and 1/2” Bare Ends,

3” split leads and 1/2” Spade lugs,

Stranded Male Plug,

Stranded Female Jack,

Mini Male Plug,

Mini Female Jack,

Accessories

None,

Bx connector,

Cable clamp

2. Feture

The Adjustable bayonet thermocouple allows for simple and rapid adjustment of the immersion length to each application , which can be adjusted to a specific length and mounted into the process directly ;
The Adjustable bayonet thermocouple are available with a variety of fixing mechanisms ;
With or without stainless steel overbraid or interlocking flexible armour cable;
Wire and tube construction ;
Easily replaceable and interchangeable

3. Application:

Plastics and rubber industry;
Dies for extrusion profiles;
Direct installation into the process;
Packaging industry;
Compression platens;

Product Tags:

temperature sensor rtd

temperature sensor rtd pt100

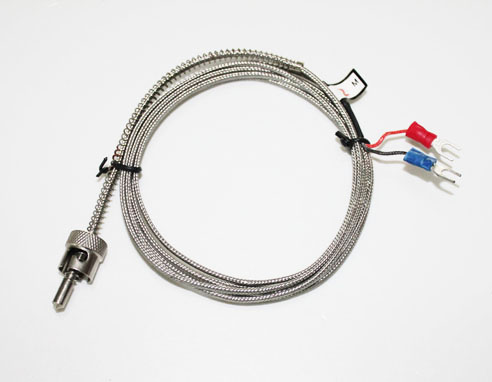

K Type Adjustable Bayonet Fiberglass Insulation Wire Thermocouple Probe Images
